Glass Fiber Mesh

Saint Gobain Gyproc® Glass Fiber mesh is a solution which guarantees excellent protection from cracks at different joints and conduits. Gyproc® Glass Fiber mesh is used in Beam and column joints, Plumbing and electrical work, chasing areas, doors and window joints.

Neatly woven, crisscross pattern of fiberglass from E-glass woven and further coated through copolymer. Gyproc Glass Fiber mesh does not decompose and will not rust over time. High quality material with tensile strength which does not permit the structure to move freely in case of hairline cracks, disjoints etc. It also resists high temperature, corrosion and environmental humidity.

Ideal building material for reinforcement and is widely used in joints before Saint-Gobain Gyproc Gypsum Plastering and traditional Sand–Cement plastering.

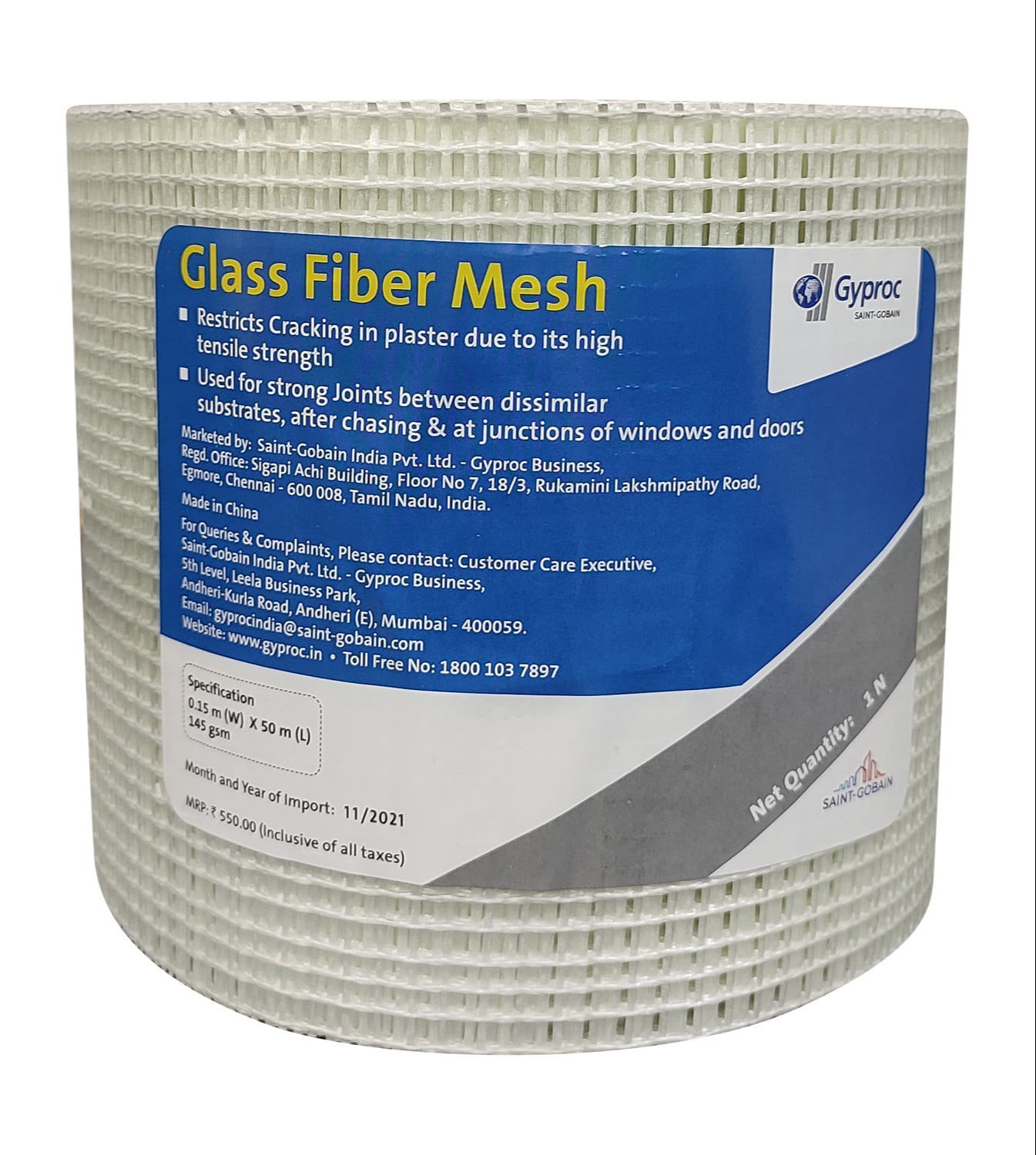

Gyproc Glass Fiber Mesh

Areas of Application

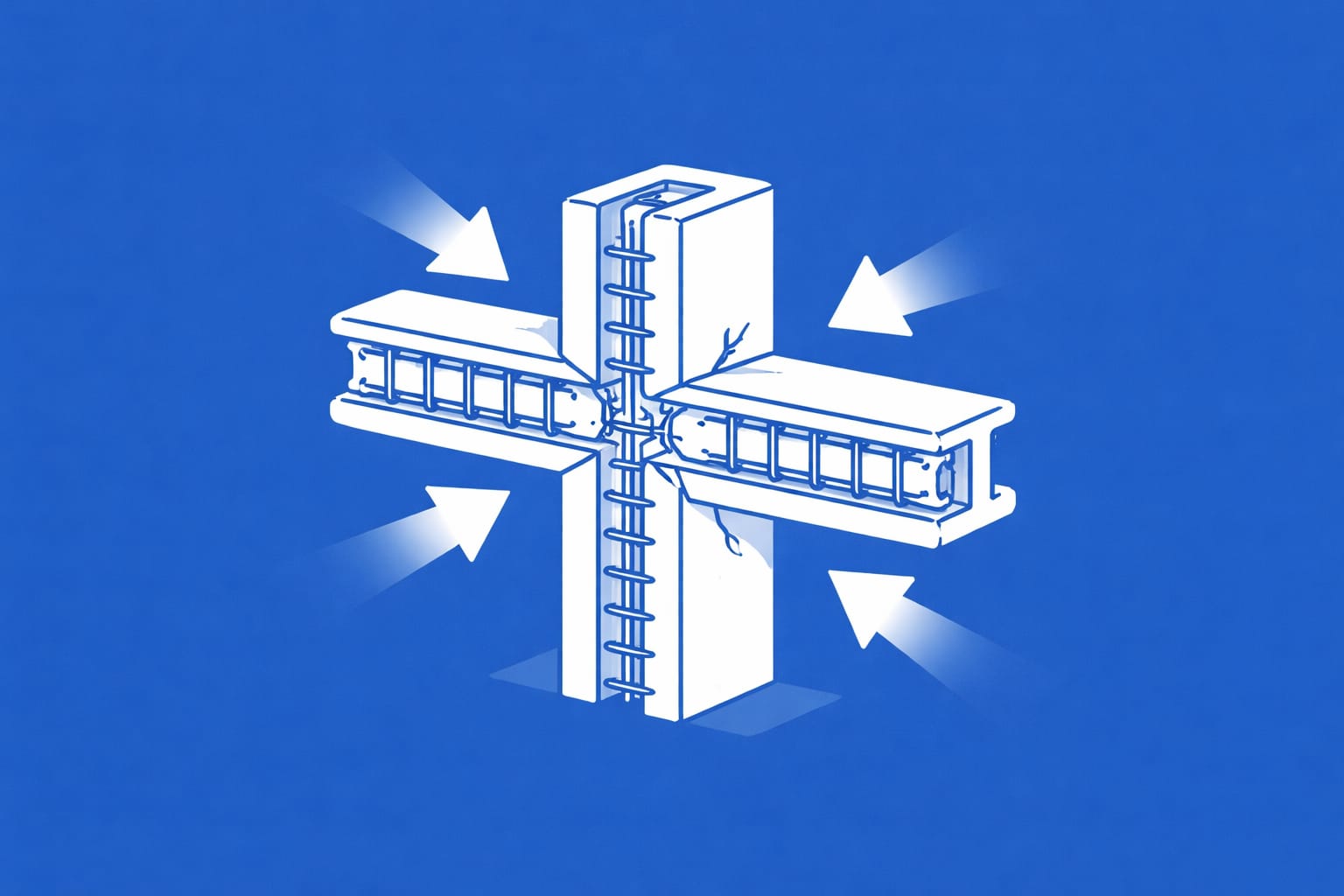

Beam & Column Joints
Beam & Column Joints

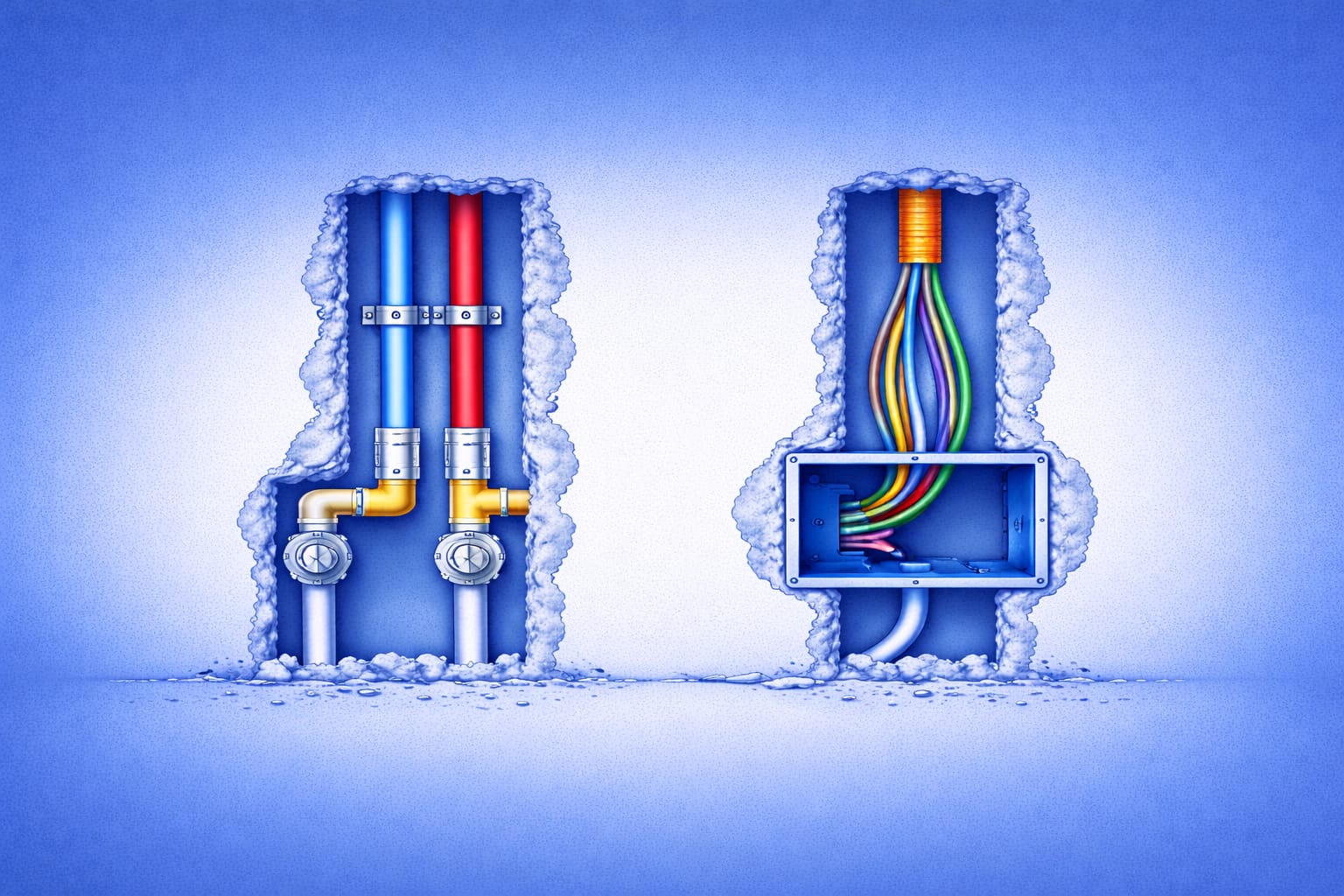

Plumbing & Electrical Work
Plumbing & Electrical Work Chasing Areas

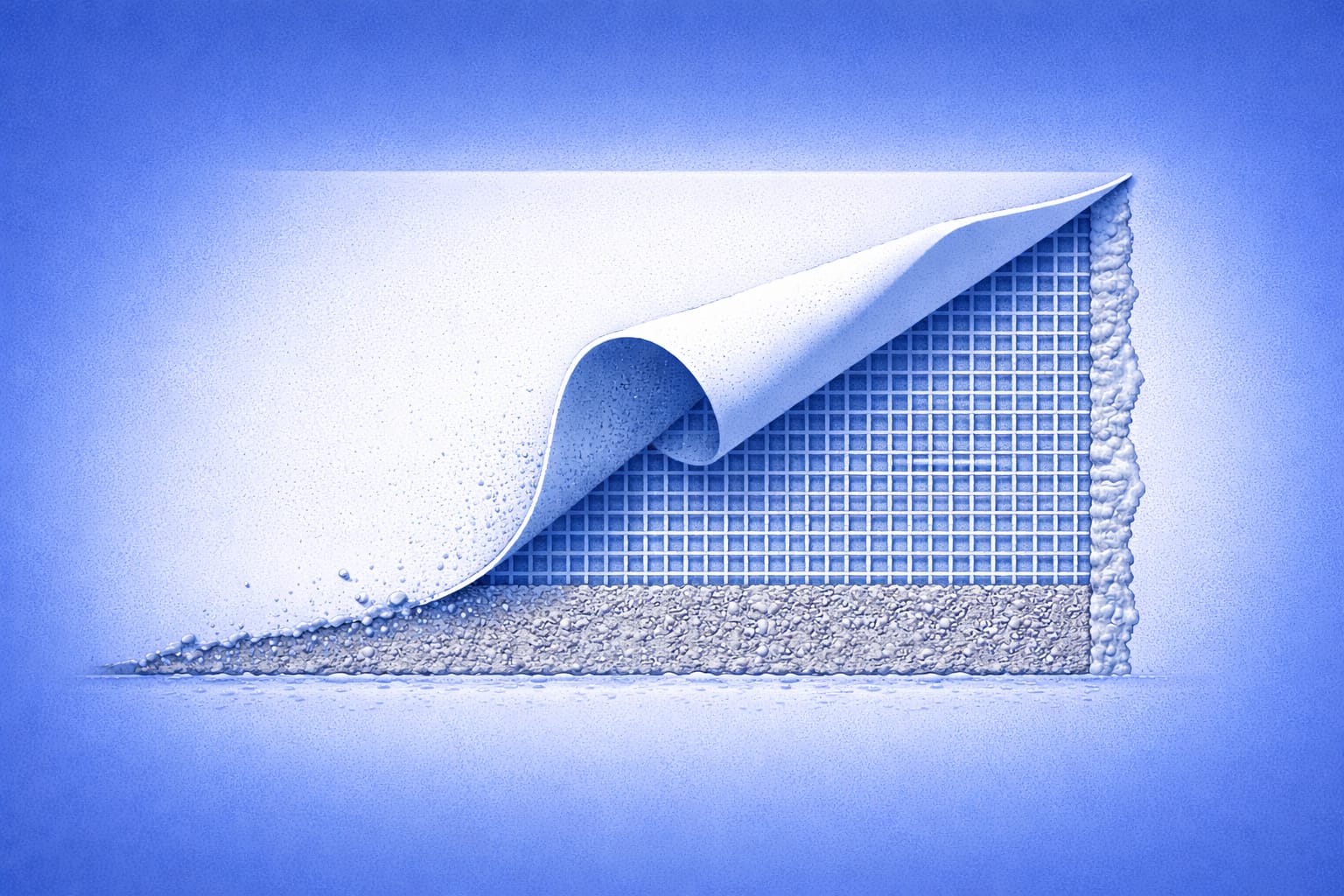

Areas With Thin Plaster
Areas With Thin Plaster

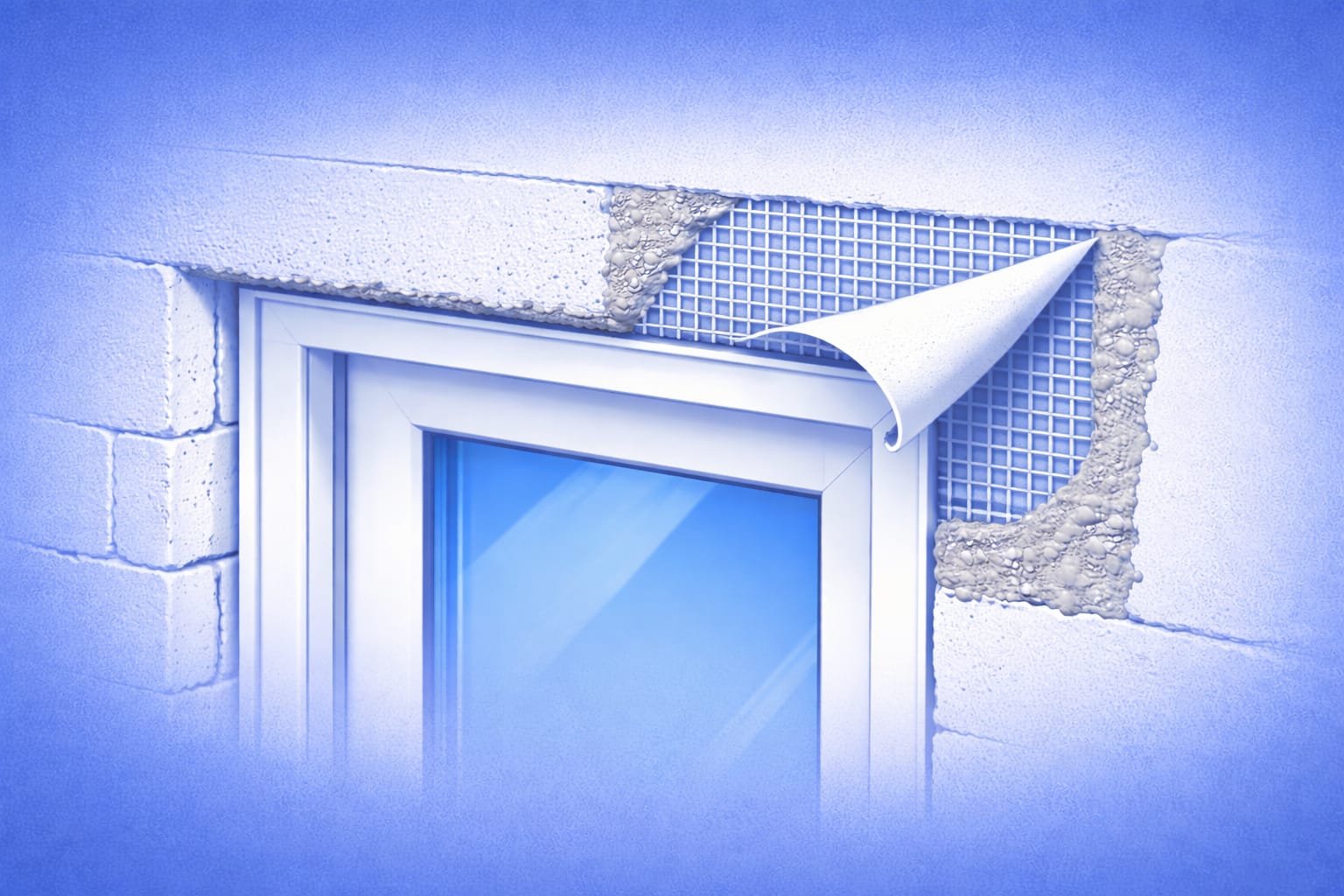

Door & Window Joints
Door & Window Joints

Advantages of Using Glass Fiber Mesh

Superior Weaving
Superior Weaving
  • ✔ No deformation
  • ✔ Better protection
  • ✔ Superior crack resistance
All Substrates, Great Finish
All Substrates, Great Finish
  • ✔ Works on gypsum & sand cement
Superior Strength
Superior Strength
  • ✔ Wrap strength > 950N
  • ✔ Weft strength > 1200N
Ease of Use
Ease of Use
  • ✔ 6 Inch width
  • ✔ Ready to use

Dimensional Characteristics

Properties Name Properties Value
Treated Fabric Weight 145 gsm
Mesh Size 5mm x 5mm
Standard Roll Width x Length 0.15m x 50m

Chemical Characteristics

Properties Name Properties Value
Class E
Coating Alkali Resistant

Tensile Strength

Properties Name Properties Value
Tensile Strength (wrap/weft) (N/5 cm²) 1500

Other Parameters

Properties Name Properties Value
Temperature Resistance 500° C
Emulsion Content 14 ± 5%
Moisture Content ≤ 0.6%
